Horizontal windlass 756-97105-00 For Boats

Item Number: 756-97105-00
Suits boat sizes:  6m ~ 9m (20ft ~ 30ft)
Handle anchor size:  Up to 30 lb
Comparable Model:  600W Model
Input Voltage:  12V DC
Maximum working load:  275kg (600lb)
Typical Working Load: 40kg (90lb)
Retrieval Speed: 19m(63ft)/min.
Pay-out Speed 756-97105-00: 22m(73ft)/min
Current Draw: 16 Amp
Motor Type / Efficiency:  Permanent magnet/ 74%
Motor Wattage I/O: 700W/300W
Gear Type / Efficiency: Spur gear/92%~98%
Weight 756-97105-00: 7.8kg (17lb)

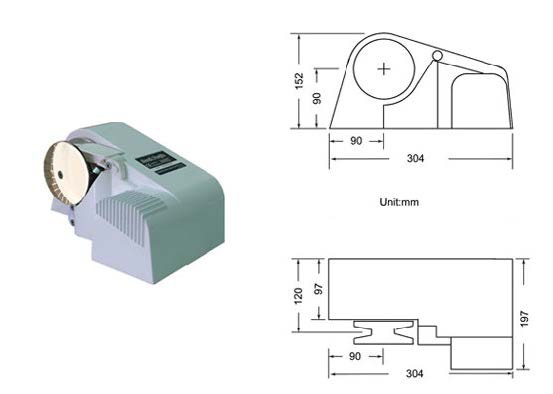

Dimension:  304mm x 197mm x 153 mm
